How to view logs about a specific Windows device in Endpoint Manager

The 'Logs' tab shows all events that occurred on a specific device. This contrasts to ‘Dashboard’ > ‘Audit Logs’, which shows events on all devices.

• Login to Xcitium

• Click 'Applications' > 'Endpoint Manager'

• Click 'Devices' > 'Device List'

• Click the 'Device Management' tab

• Click the name of a Windows device

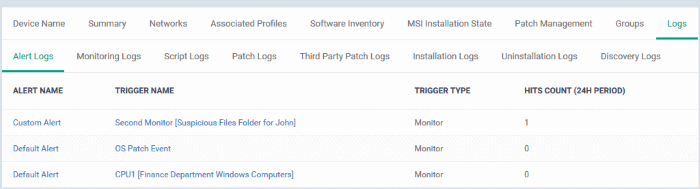

• Click the 'Logs' tab

There are eight types of a log, each on a different tab. Each row in these tabs is a specific event.

General Notes

• The first column shows the template that caused the log to be generated. This could be a named monitor, procedure, or discovery task.

  • You can manage these templates in ‘Configuration Templates’ > ‘Alerts’ / ‘Procedures’ / ‘Monitors’

  • The 'Alert Logs' tab has a slightly different layout. The template is shown in the ‘Trigger Name’ column

• The last column, ‘Details’, shows the contents of the log. Click this to view all activities in the event.

  • Again, this is slightly different in the ‘Alert Logs’ tab. ‘Details’ is replaced with ‘Hit Count’.

Click on the following for details about each type of log:

• Alert Logs

• Monitoring Logs

• Script Logs

• OS Patch Logs

• Third Party Patch Logs

• Installation Logs

• Uninstallation Logs

• Discovery Logs

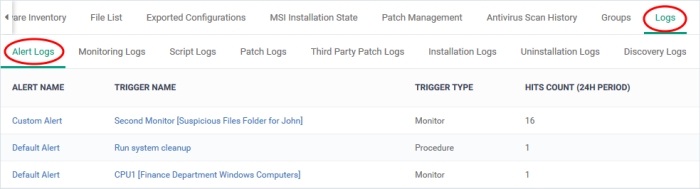

Alert Logs - An alert is a notification which informs admins if a procedure fails, or when certain conditions are met in a monitor.





For example, 'Generate an alert if CPU usage exceeds 90%', or 'Alert me when all Windows patches have been installed'.

Alert Name - The alert template used in the event.

• An alert template is just a collection of settings that determine alert recipients, information included, priority, etc. The alert template does not specify the conditions under which the alert was generated.

• The 'Trigger Name' is the procedure/monitor that actually caused the event. You also enable or disable the alert itself from the procedure/monitor edit screen.

• You apply the alert template to a procedure/monitor to define the scope of the alert.

• In the standard workflow, all procedures and monitors have the 'Default Alert' template applied to them.

• You can also create your own alert templates. Click here for help to manage alert templates.

Trigger Name - The monitor or procedure that caused the alert.

• Procedures – An alert is created if a procedure fails. Click here for help on procedures.

• Monitors – An alert is created when one or more of the monitor's conditions are met. Click here for help on monitors.

Trigger Type – Can be 'Monitor' or 'Procedure' as explained above.

Hit Count (24 H Period) - The number of times this condition was triggered in the past 24 hours.

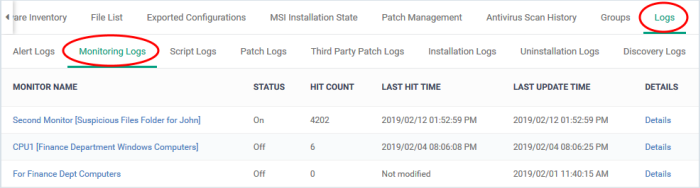

Monitoring Logs - Shows events that met the conditions of a monitor.

• A monitor is a routine which keeps track of specific items on an endpoint. For example, you may set a monitor to track disk usage and alert you if it goes above a certain %.

• You can also configure a monitor to run a procedure, or create a service desk ticket if its conditions are met.

• You first create a monitor then you add it to the 'Monitoring' section of a profile.

• Monitor name - The monitor that was triggered to create the log.

  • Click the name to view and manage the settings of the monitor.

• Status - Whether or not the monitor is currently active on the device.

• Hit count - The number of times the monitored condition was breached during the last 24 hours.

• Last hit time - Date and time the monitored rule was last broken.

• Last update time - Date and time when the information was last refreshed.

• Details - Click the 'Details' link to see all activities in the event.

Details are shown in three tabs:


• Logs - Date and time the event occurred. It also shows the monitoring rule that detected the event.

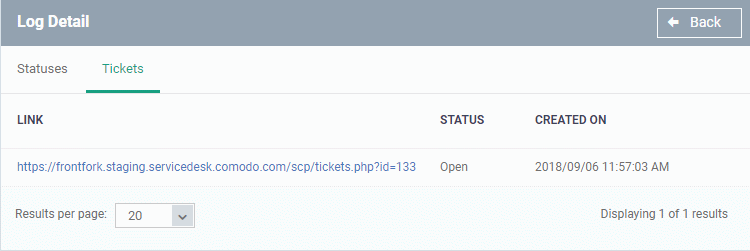

• Tickets - Shows any service desk tickets created by the events.

• Statuses - Shows the current status of all conditions monitored on the device.

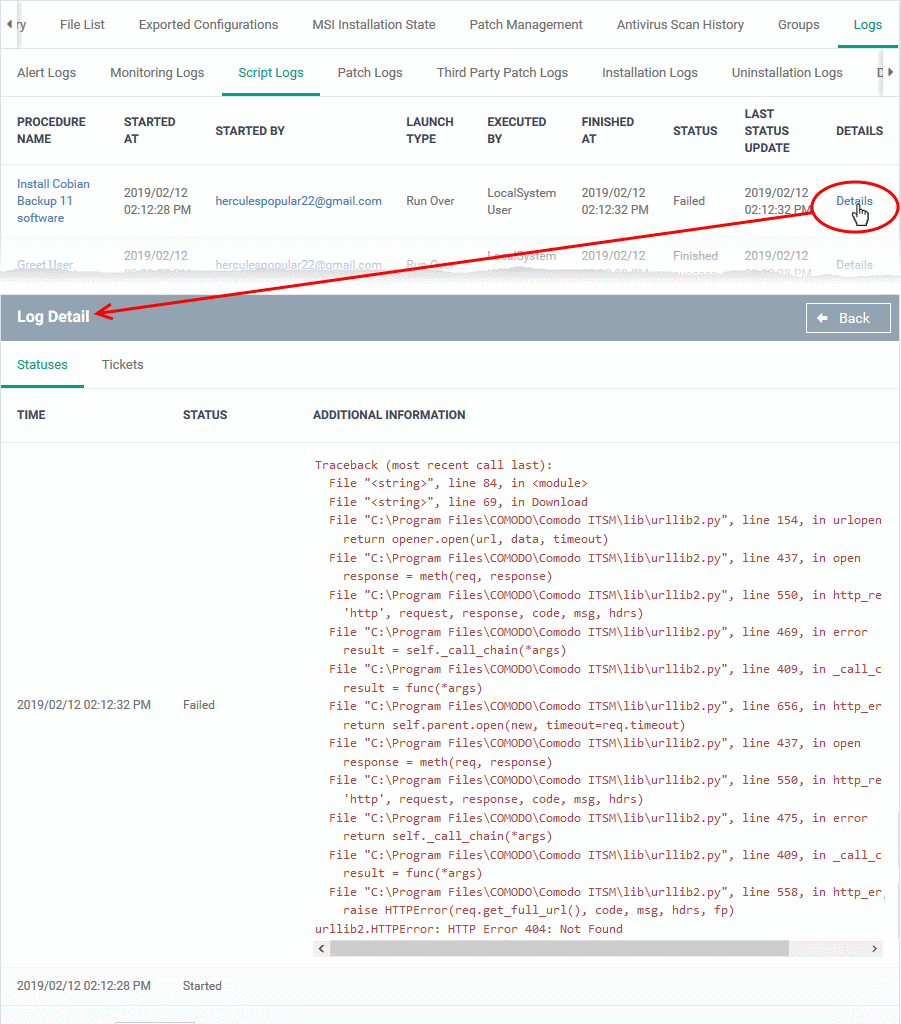

Script Logs - Shows script procedures that were manually run on Windows devices, and scripts that were auto-run via a profile.

• EM ships with a number of pre-defined script procedures for various tasks. For example, 'Get Software Inventory', 'Enable Windows Firewall', 'Check Disk Errors'. You can also compose your own Python scripts in the built-in editor.

• Script procedures can be added to a profile and run at a scheduled time. You can also manually run them on target devices at any time
  .
  • Click here if you want more help with procedures.

• A log is created each time a script procedure runs. The log contains details about the script and states whether it executed successfully.

• Procedure Name - The label of the script procedure that was run on the device.

  • Click the procedure name to view script details.

• Started by - Who or what launched the procedure.

  • A profile name is shown here if the script was scheduled in a profile.

  • An admin’s name or email is shown if the procedure was run manually.

• Launch type - How the procedure was launched. This is linked to the ‘Started by’ column:

  • Scheduled - The script ran because it was scheduled in a profile.

  • Run over - The script was manually run by an admin.

• Executed By - The user account type used by EM to execute the procedure.

• Finished At - Date and time the procedure completed.

• Status - Whether the script successfully executed or not.

  • You can configure an alert if a procedure deployment fails.

• Last Status Update - The date and time the information was last updated.

• Details - Click the 'Details' link to view a log of the procedure's execution.

Details are shown over two tabs:

• Statuses - Date and time that each stage of the procedure ran, its success status, and result.

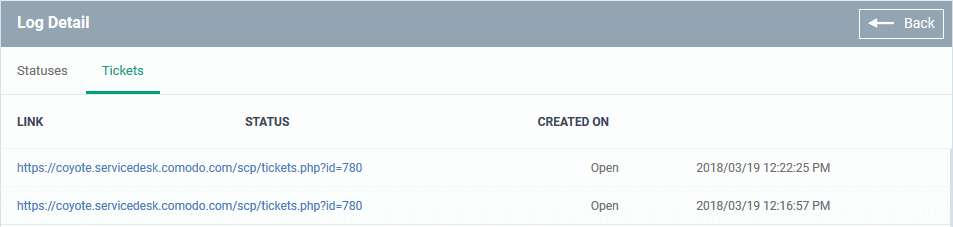

• Tickets - Shows Service Desk tickets generated because of a failed procedure.

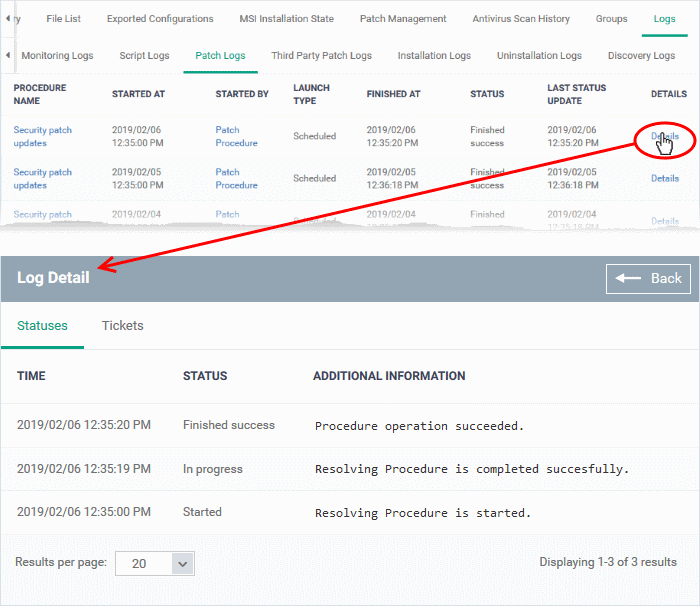

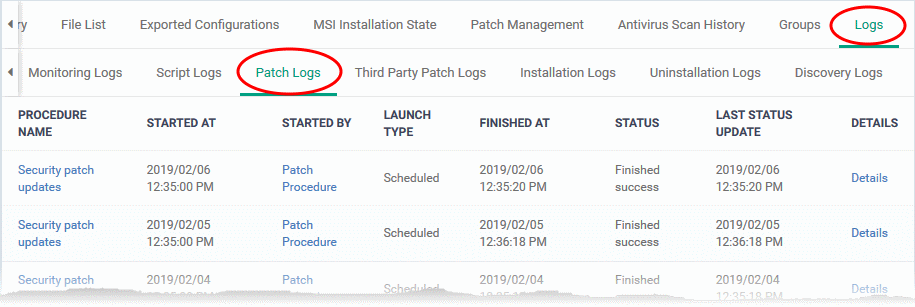

Patch Logs – Operating system patch procedures that ran as part of a profile, or were manually run by an admin.

• You can view and create procedures at 'Configuration Templates' > 'Procedures' > 'Predefined Procedures' > 'Patch Deployment'

• Click here if you want more help on procedures

A log is created each time a patch procedure runs. The log contains details about the patch and states whether or not it ran successfully.




• Procedure Name - Click the procedure name to view its details.

• Started at - Date and time the procedure commenced.

• Started by - Who or what launched the procedure.

  • A profile name is shown here if the script was scheduled in a profile.

  • An admin’s name or email is shown if the procedure was run manually.

• Launch type - This is linked to the ‘Started by’ column:

  • Scheduled - The script ran because it was scheduled in a profile.

  • Run over - The script was manually run by an admin.

• Finished At - The date and time the procedure completed.

• Status – Indicates whether the patch is installed, not yet installed, or installed but the endpoint needs rebooting

• Last Status Update - The date and time when the information was last updated.

• Details - Click the 'Details' link to view a log of the procedure's execution.

Details are shown across two tabs:


• Statuses - Date and time that each stage of the procedure ran, its success status, and result.

• Tickets - Shows Service Desk tickets generated because of a failed procedure.

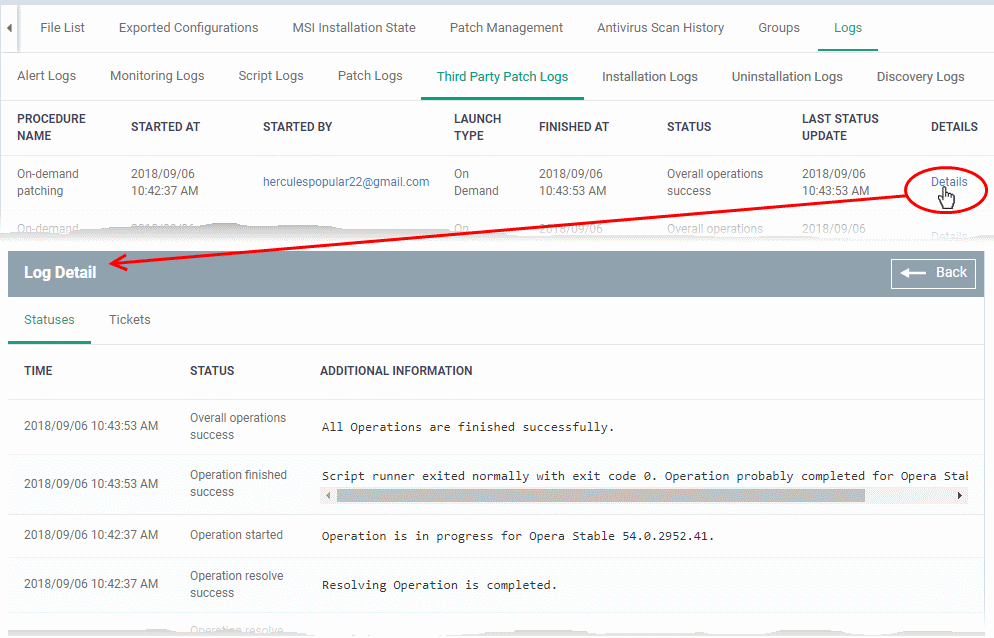

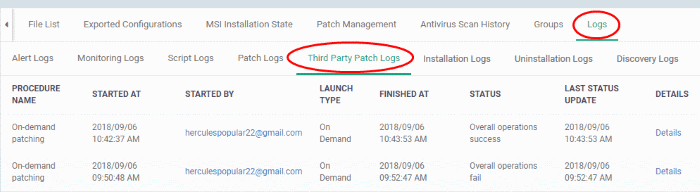

Third party patch logs – Procedures to patch 3rd party software on the devices. It contains logs of procedures that ran as part of a profile or were manually run by an admin.

• You can view and create procedures at 'Configuration Templates' > 'Procedures' > 'Predefined Procedures' > 'Patch Deployment'

• Click here if you want more help on procedures

A log is created each time a patch procedure runs. The log contains details about the patch and states whether or not it ran successfully.




• Procedure Name - Click the procedure name to view its details.

• Started at - Date and time the procedure commenced.

• Started by - Who or what launched the procedure.

  • A profile name is shown here if the script was scheduled in a profile.

  • An admin’s name or email is shown if the procedure was run manually.

• Launch type - This is linked to the ‘Started by’ column:

  • Scheduled - The script ran because it was scheduled in a profile.

  • Run over - The script was manually run by an admin.

• Finished At - The date and time the procedure completed.

• Status – States whether the procedure was successful or not.

  • You can set an alert if a procedure fails.

• Last Status Update - The date and time when the information was last updated.

• Details - Click the 'Details' link to view a log of the procedure's execution.

Details are shown across two tabs:


• Statuses - Date and time that each stage of the procedure ran, its success status, and result.

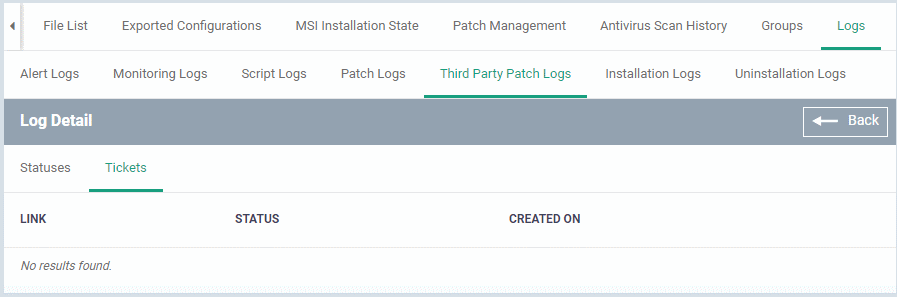

• Tickets - Shows Service Desk tickets generated because of a failed procedure.

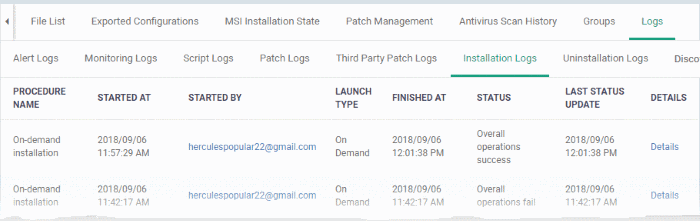

Installation Logs - Shows installations of third party applications from the Windows application Store ('Application Store' > 'Windows Application Store').

• See this wiki for help to deploy applications from the store to managed devices

A log is created each time an application is remotely installed on a device. The log contains details about the installation, and whether or not it was successful.




• Procedure Name - The only possible value is 'On-demand installation'. This means the app was pushed from 'Application Store' > 'Windows Application Store'.

• Started at - The date and time the installation commenced.

• Started by - The admin who started the remote installation.

• Launch type - The only possible value is 'On Demand'. This means the install was manually run by an admin from the EM console.

• Finished At - The date and time the procedure completed.

• Status - States whether the procedure was successful or not.

• Last Status Update - The date and time when the information was last updated.

• Details - Click the 'Details' link to view a log of the procedure's execution.


Uninstallation Logs - Logs about the removal of third party applications from devices.

There are two ways in which you can remotely uninstall applications:

'Device Details' interface – Uninstall apps from an individual device.

• Click 'Devices' > 'Device List' > 'Device Management'

• Click the name of a Windows device and select the 'Software Inventory' tab

• Select the applications and click 'Uninstall Selected Application' on the top

'Global Software Inventory' interface – Uninstall apps from all managed devices.

• Click 'Application' > 'Global Software Inventory'

• Select the application to be uninstalled

• Click 'Uninstall' on the top

A log is created each time an application is remotely removed from a device.

• Procedure Name - The only possible value is 'On-demand Uninstallation'.

• Started at - Date and time the uninstall began.

• Started by - The admin who started the uninstall operation.

• Launch type - Shows whether the uninstall was scheduled or manual. The only possible value is 'On Demand'.

• Finished At - The date and time the procedure completed.

• Status - States whether the procedure was successful or not.

• Last Status Update - The date and time when the information was last updated.

• Details - Click the 'Details' link to view a log of the uninstallation stages

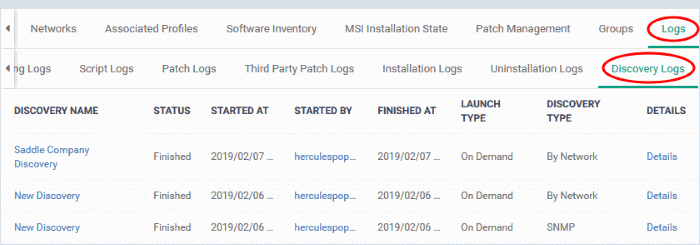

Discovery Logs – Shows network discovery scans run from the device.

• Any managed Windows device can be used as a probe device to run discovery scans on a network.

• The discovery logs tab shows any such scans run from this device.

  • See this wiki if you want to learn more about network discovery scans.


• Discovery Name - Click the discovery name to view its details.

• Status - States whether the procedure was successful or not.

• Started At - Date and time the procedure commenced.

• Started By - The admin who launched the scan.

• Finished At - Date and time the scan ended.

• Launch Type - How the scan was started. For example, 'On Demand' means it was manually started by an admin.

• Type of Discovery - Can be an SNMP scan or network (IP) scan.

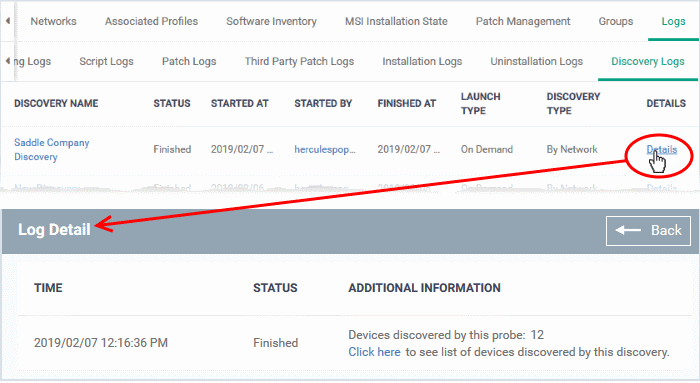

• Details - Click the 'Details' link for more information about the scan. For example, this will tell you the number of devices found and their names.

• Click the 'Click here' link to view the devices found by the scan.
